Price range: $22,800.00 through $165,800.00

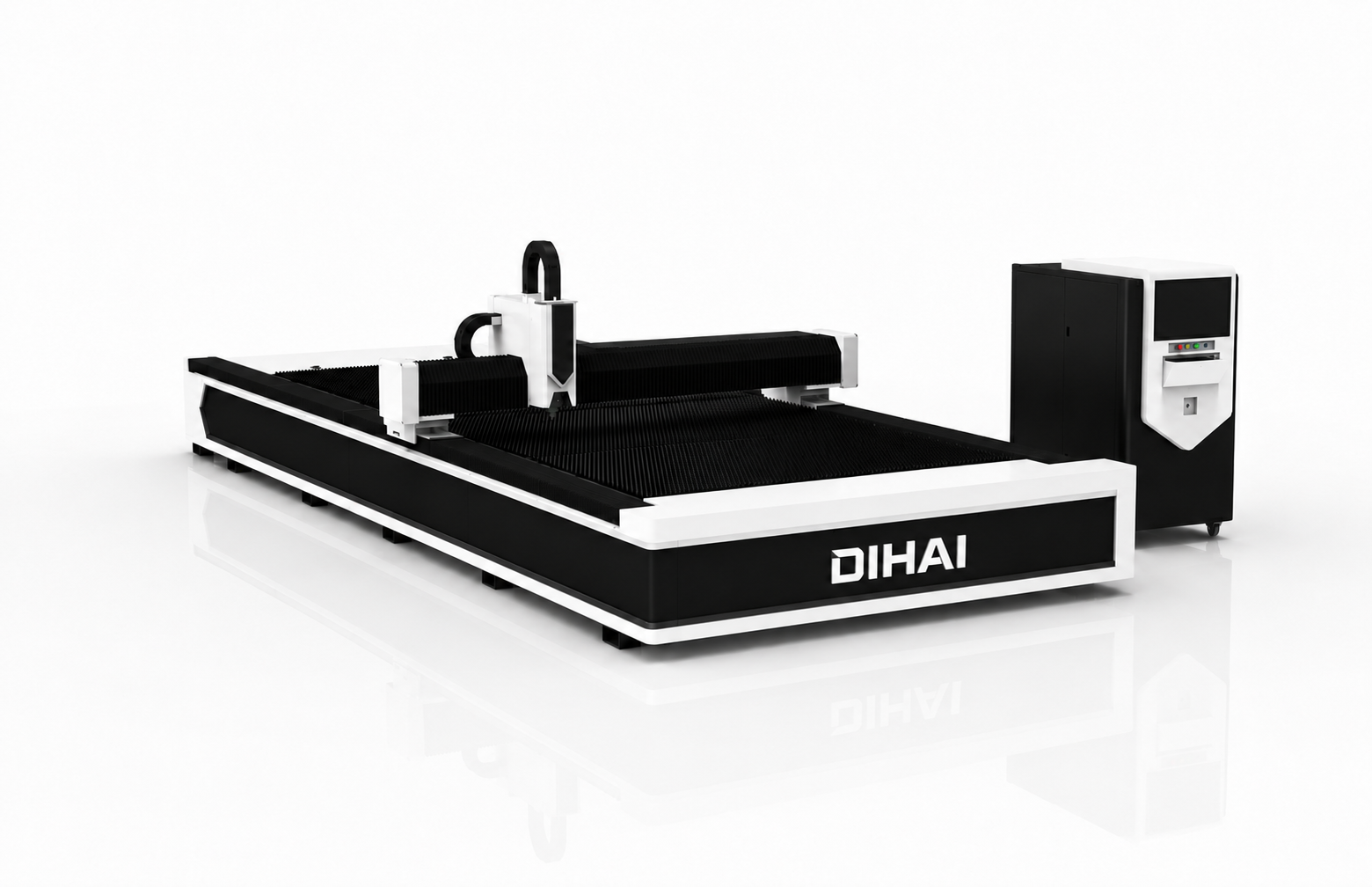

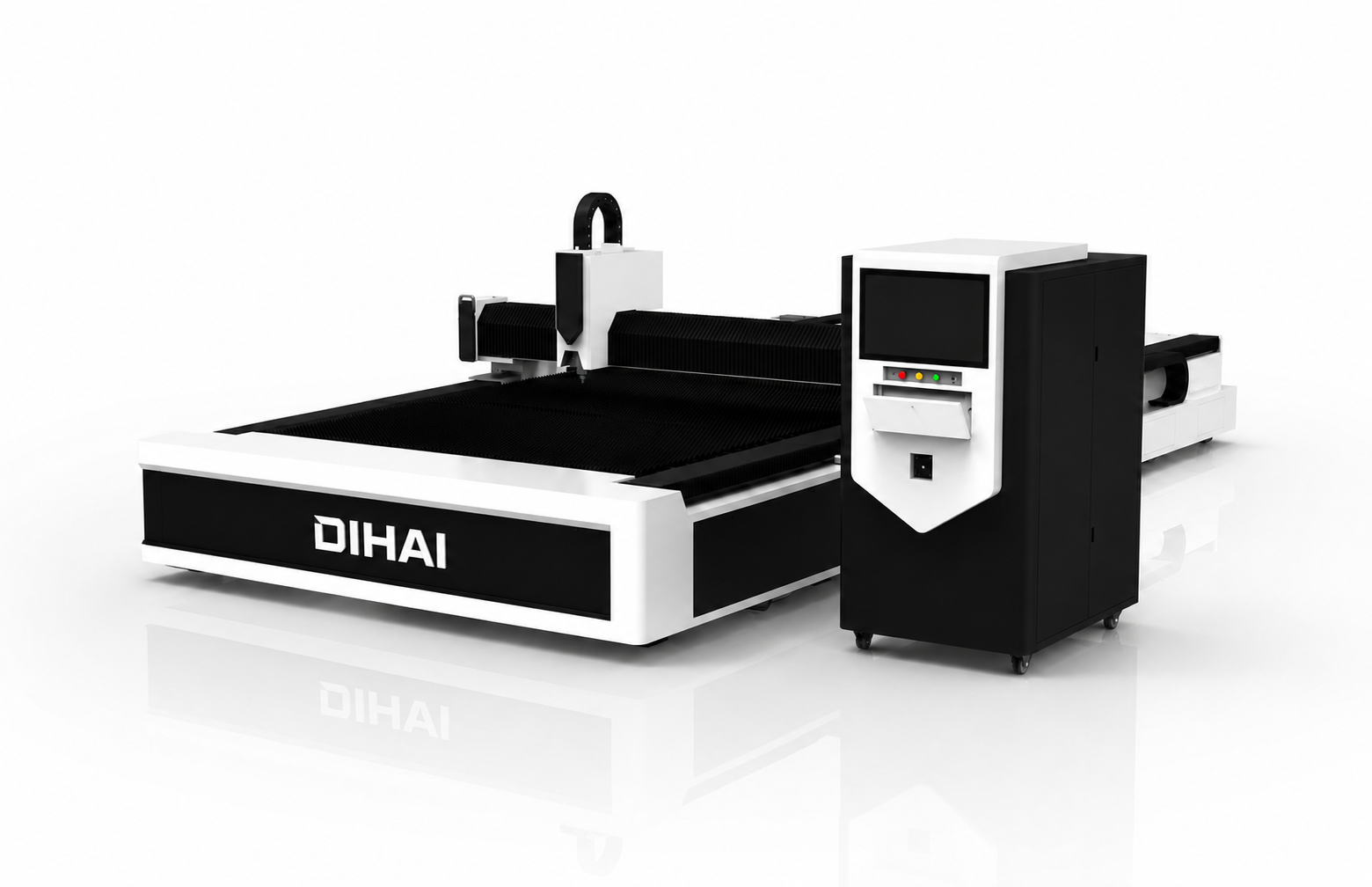

The Large Format Fiber Laser Cutting Machine is designed for high-precision cutting of oversized metal sheets with exceptional speed and stability. Equipped with an advanced fiber laser source, intelligent CNC control system, and heavy-duty gantry structure, it delivers superior cutting performance for industrial-scale manufacturing. Its large working area makes it ideal for processing steel plates, aluminum sheets, stainless steel, brass, copper, and other metal materials efficiently.
The Large Format Fiber Laser Cutting Machine is specially developed for manufacturers requiring high-speed processing of large metal sheets with exceptional precision. Featuring a spacious 6000 × 2500 mm working area, this machine is ideal for cutting oversized workpieces while maintaining excellent dimensional accuracy and edge quality.
Built with a reinforced welded steel bed, high-rigidity gantry, precision linear guide rails, and high-performance AC servo motors, the machine ensures stable operation even during continuous heavy-duty production. The advanced fiber laser source provides fast cutting speeds, low energy consumption, and minimal maintenance costs.
Widely used in steel fabrication, construction equipment manufacturing, heavy machinery, shipbuilding, bridge engineering, agricultural machinery, and industrial production, this machine is the ideal solution for large-scale metal processing.
| Specification | Details |
|---|---|
| Model | LF-6025 |
| Working Area | 6000 × 2500 mm |
| Machine Type | Open Platform |
| Laser Power | 1500W / 2000W / 3000W / 6000W / 12000W / 20000W |
| Positioning Accuracy | ±0.03 mm |
| Repeat Position Accuracy | ±0.02 mm |
| Maximum Cutting Speed | 140 m/min |
| Maximum Acceleration | 1.5 G |
| CNC Controller | Intelligent CNC System |
| Drive System | AC Servo Motor |
| Transmission | Precision Rack & Pinion |
| Guide Rails | HIWIN Linear Guides |
| Cooling System | Industrial Water Chiller |
| Power Supply | 380V / 50Hz / 3 Phase |
| Supported File Formats | DXF, DWG, AI, PLT |
| Machine Weight | Approx. 8,000–12,000 kg |
| Material | Maximum Thickness* |
|---|---|
| Carbon Steel | Up to 30 mm |
| Stainless Steel | Up to 25 mm |
| Aluminum | Up to 20 mm |
| Brass | Up to 16 mm |
| Copper | Up to 12 mm |
| Galvanized Steel | Up to 12 mm |
| Titanium Alloy | Up to 12 mm |
*Maximum cutting thickness depends on the selected laser power.
Suitable for:
| Component | Brand / Specification |
|---|---|
| Fiber Laser Source | Raycus / MAX / IPG (Optional) |
| Laser Cutting Head | Raytools / BOCI Auto Focus |
| CNC Controller | FSCUT |
| Servo Motor | Yaskawa / Inovance |
| Guide Rails | HIWIN |
| Rack & Pinion | YYC |
| Water Chiller | Hanli / S&A |
| Electrical Components | Schneider |
| Lubrication System | Automatic |
| Optional Equipment |
|---|
| Automatic Loading System |
| Automatic Unloading System |
| Exchange Table |
| Dust Collector |
| Voltage Stabilizer |
| Air Compressor |
| Fume Extraction System |
| Intelligent Nesting Software |
| Remote Monitoring System |
| Item | Coverage |
|---|---|
| Machine Warranty | 2 Years |
| Laser Source Warranty | Up to 3 Years |
| Technical Support | Lifetime Online Support |
| Installation | Available |
| Operator Training | Available |
The Large Format Fiber Laser Cutting Machine is the ideal solution for businesses that require precision cutting of large metal sheets without compromising speed or quality. Its robust construction, intelligent CNC system, and advanced fiber laser technology deliver exceptional productivity, lower operating costs, and reliable long-term performance, making it a valuable investment for modern industrial manufacturing and heavy-duty metal fabrication.
