Price range: $39,800.00 through $69,800.00

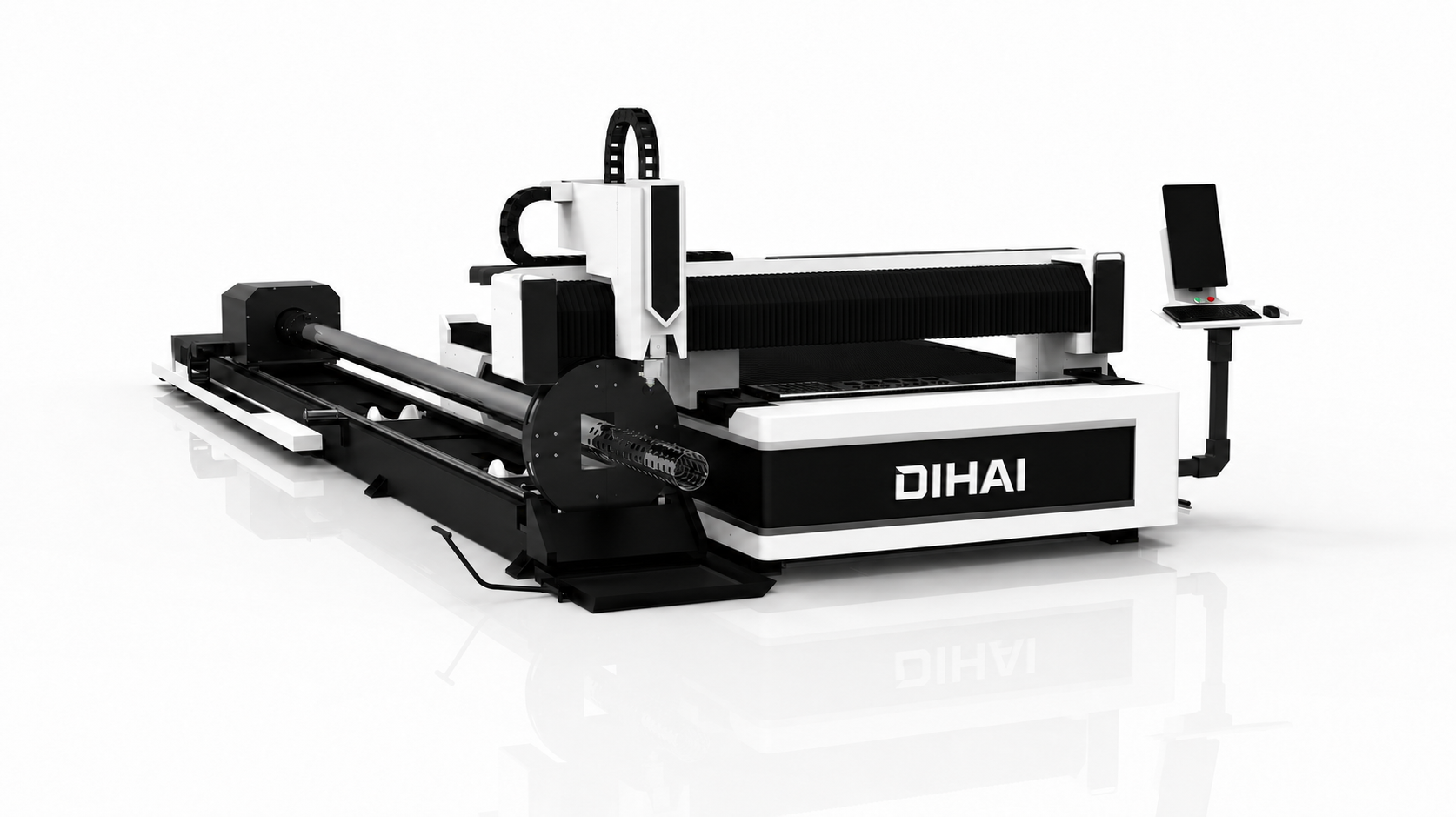

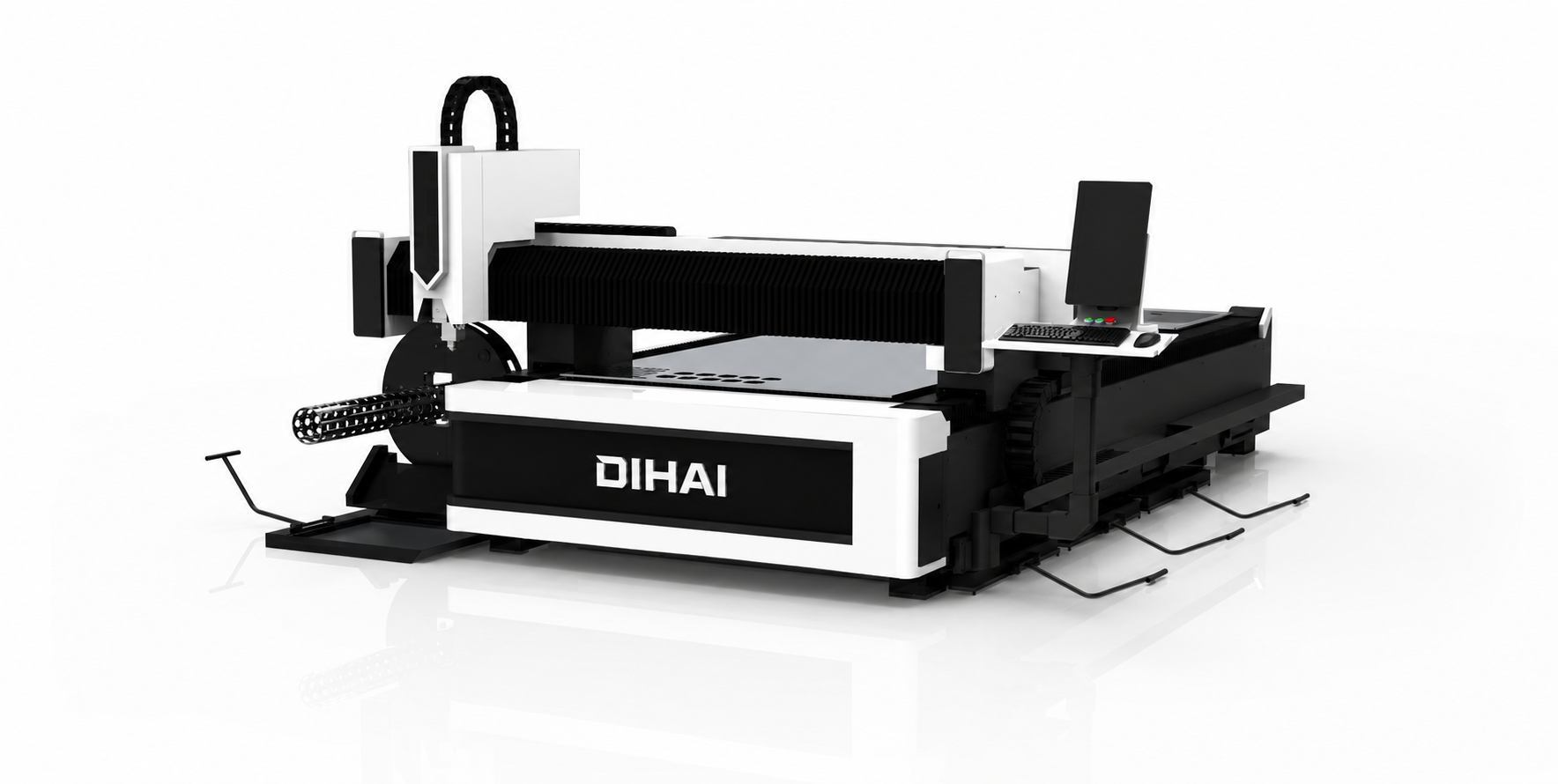

The Sheet & Tube Fiber Laser Cutting Machine is an advanced all-in-one metal processing solution designed for cutting both flat metal sheets and round, square, rectangular, and special-shaped tubes with exceptional precision. Featuring high-speed fiber laser technology, automatic tube clamping, and intelligent CNC control, it delivers outstanding productivity, accuracy, and energy efficiency for modern manufacturing industries.
The Sheet & Tube Fiber Laser Cutting Machine combines flat sheet cutting and tube cutting into one highly efficient CNC system, reducing equipment investment while maximizing production flexibility. It is engineered to process carbon steel, stainless steel, aluminum, brass, copper, galvanized steel, and other metal materials with excellent cutting quality.
Its intelligent CNC control system, precision servo motors, and automatic pneumatic chuck ensure stable operation, high positioning accuracy, and minimal material waste. The machine is suitable for fabrication workshops, automotive manufacturing, metal furniture production, construction materials, fitness equipment, agricultural machinery, and industrial fabrication.
| Specification | Details |
|---|---|
| Model | STF-3015T |
| Laser Power | 1000W / 1500W / 2000W / 3000W / 6000W |
| Sheet Working Area | 3000 × 1500 mm |
| Tube Length | Up to 6000 mm |
| Tube Diameter | 20–220 mm |
| Positioning Accuracy | ±0.03 mm |
| Reposition Accuracy | ±0.02 mm |
| Maximum Cutting Speed | 120 m/min |
| Maximum Acceleration | 1.5 G |
| CNC Controller | Intelligent CNC System |
| Drive System | Servo Motor |
| Transmission | Precision Rack & Pinion |
| Cooling System | Industrial Water Chiller |
| Power Supply | 380V / 50Hz / 3 Phase |
| Supported File Formats | DXF, AI, PLT, DWG |
| Machine Weight | Approx. 5,500–8,000 kg |
| Material | Maximum Thickness* |
|---|---|
| Carbon Steel | Up to 25 mm |
| Stainless Steel | Up to 20 mm |
| Aluminum | Up to 16 mm |
| Brass | Up to 12 mm |
| Copper | Up to 10 mm |
| Galvanized Steel | Up to 10 mm |
*Thickness depends on the selected laser power.
| Tube Type | Supported |
|---|---|
| Round Tube | ✔ |
| Square Tube | ✔ |
| Rectangular Tube | ✔ |
| Oval Tube | ✔ |
| Angle Steel | ✔ |
| Channel Steel | Optional |
| Custom Profiles | Optional |
Ideal for:
| Component | Brand/Specification |
|---|---|
| Fiber Laser Source | Raycus / MAX / IPG (Optional) |
| Laser Cutting Head | Raytools / BOCI |
| CNC Controller | FSCUT |
| Servo Motor | Yaskawa / Inovance |
| Guide Rail | HIWIN |
| Rack & Pinion | YYC |
| Water Chiller | Hanli / S&A |
| Electrical Components | Schneider |
| Optional Equipment |
|---|
| Automatic Loading System |
| Automatic Unloading System |
| Dust Collector |
| Voltage Stabilizer |
| Air Compressor |
| Fume Extraction System |
| Rotary Device |
| Automatic Nesting Software |
| Item | Coverage |
|---|---|
| Machine Warranty | 2 Years |
| Laser Source Warranty | Up to 3 Years (depending on brand) |
| Technical Support | Lifetime Online Support |
| Installation | Available |
| Operator Training | Available |
The Sheet & Tube Fiber Laser Cutting Machine offers exceptional versatility by combining sheet and tube processing into a single CNC platform. With its high-speed fiber laser technology, intelligent control system, and robust mechanical design, it helps manufacturers increase productivity, reduce operating costs, and achieve consistent, high-quality cutting results across a wide range of metal fabrication applications.
