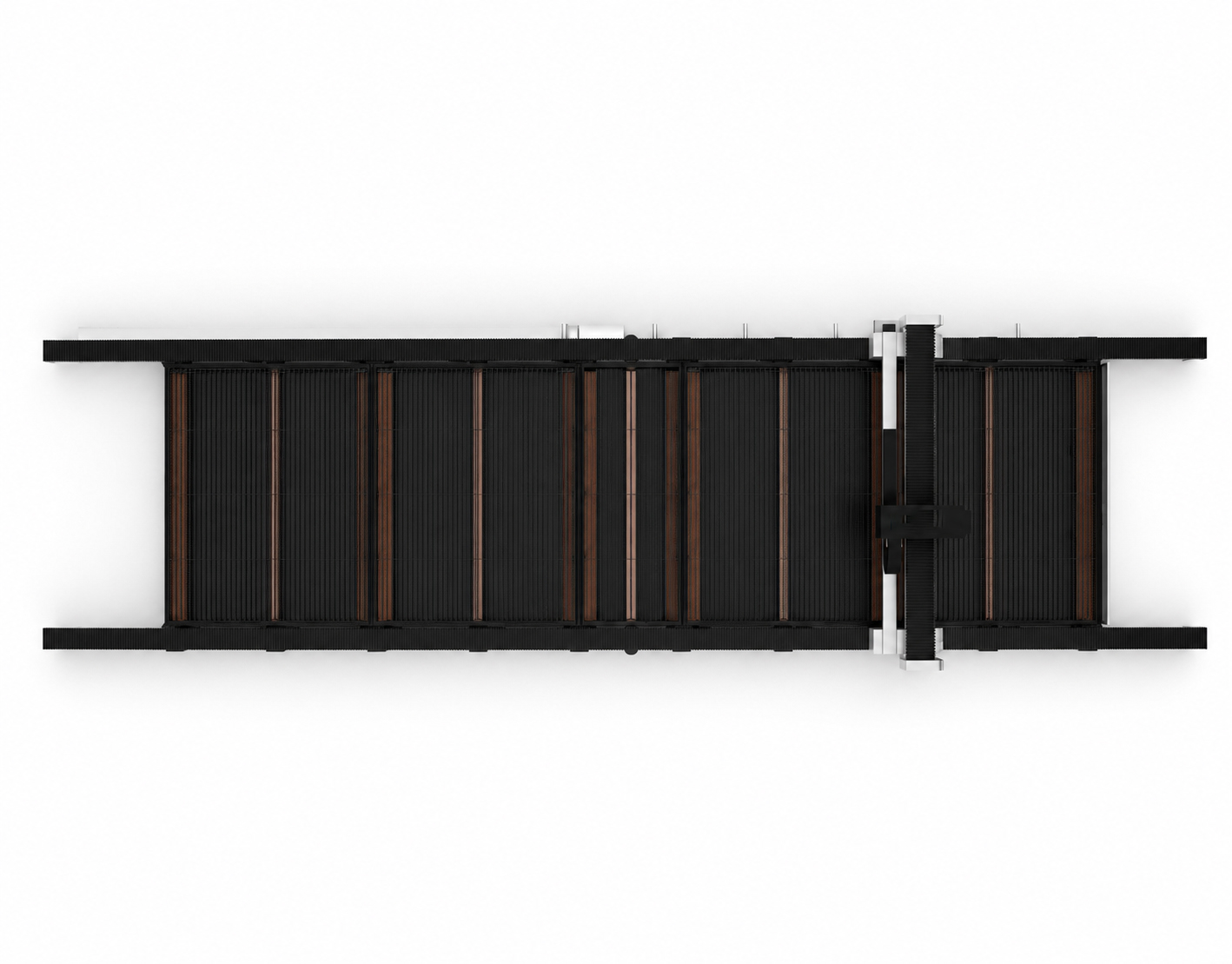

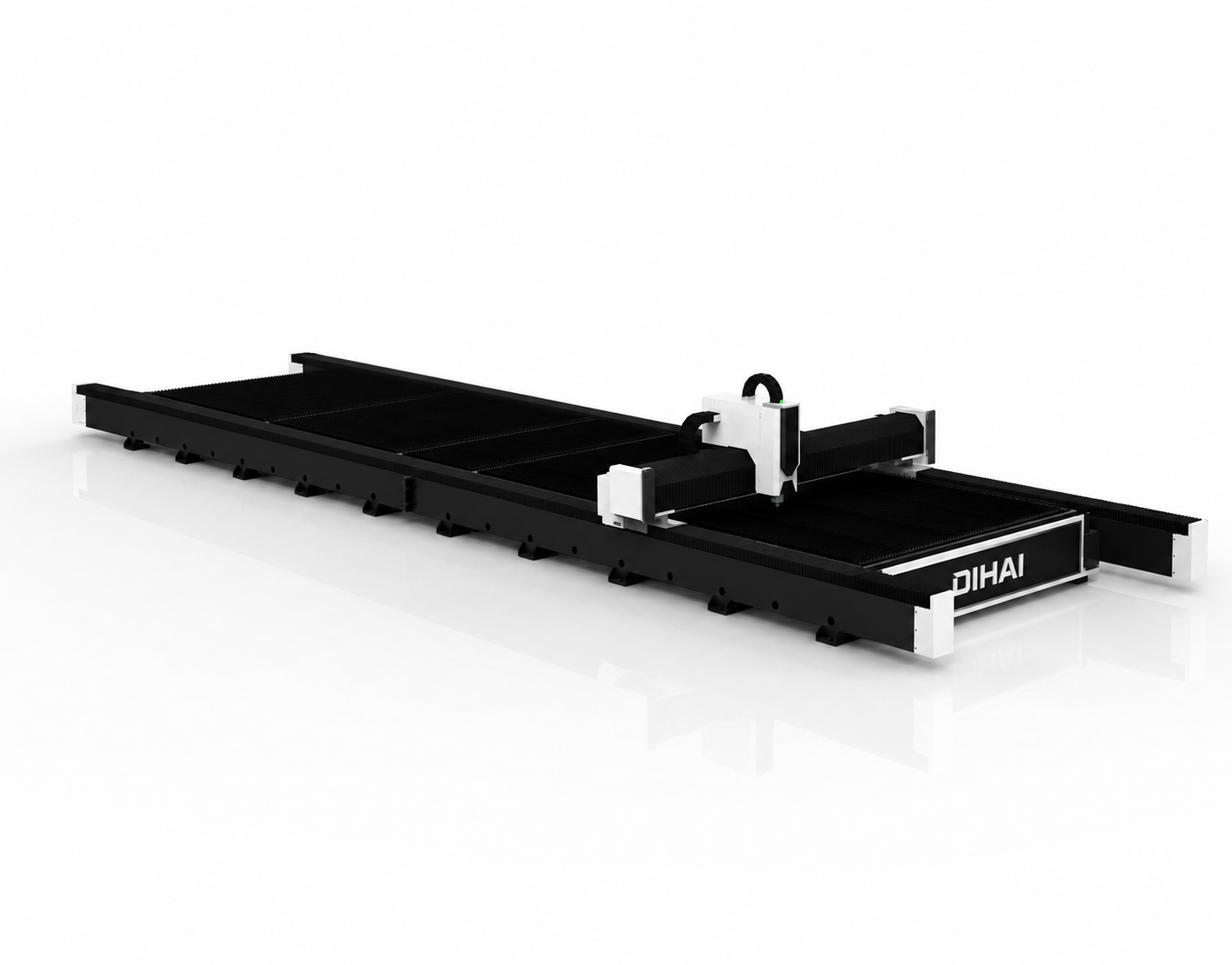

Ground Rail Large Format Fiber Laser Cutting Machine

The Ground Rail Large Format Fiber Laser Cutting Machine is specifically engineered for high-precision cutting of extra-large metal sheets. Featuring a precision ground rail motion system and reinforced gantry structure, it ensures smooth movement, excellent stability, and exceptional cutting accuracy even over extended travel distances.

Designed for heavy industrial applications, this machine supports continuous production while maintaining superior cutting quality. Equipped with an advanced fiber laser source, automatic focus cutting head, and intelligent CNC control system, it offers high-speed operation, reduced maintenance, and excellent energy efficiency.

It is suitable for processing carbon steel, stainless steel, aluminum, brass, copper, galvanized steel, titanium, and other metal materials used in heavy fabrication industries.

Key Features

Heavy-duty ground rail motion system
Extra-large working area
High-speed fiber laser cutting technology
Intelligent CNC control system
Automatic focus laser cutting head
Reinforced steel gantry structure
Precision rack & pinion transmission
High-performance AC servo motors
Stable long-distance positioning accuracy
Low maintenance operation
Energy-efficient laser technology
Designed for continuous industrial production

Technical Specifications

Specification	Details
Model	GR-10025
Working Area	10000 × 2500 mm
Machine Type	Ground Rail Large Format
Laser Power	3000W / 6000W / 12000W / 20000W / 30000W
Positioning Accuracy	±0.05 mm
Repeat Position Accuracy	±0.03 mm
Maximum Cutting Speed	160 m/min
Maximum Acceleration	1.5 G
CNC Controller	FSCUT Intelligent CNC System
Drive System	AC Servo Motor
Transmission	Precision Rack & Pinion
Guide System	Ground Rail Linear Guide
Cooling System	Industrial Water Chiller
Power Supply	380V / 50Hz / 3 Phase
Supported File Formats	DXF, DWG, AI, PLT
Machine Weight	Approx. 12,000–18,000 kg

Cutting Materials

Material	Maximum Thickness*
Carbon Steel	Up to 50 mm
Stainless Steel	Up to 40 mm
Aluminum	Up to 35 mm
Brass	Up to 20 mm
Copper	Up to 20 mm
Galvanized Steel	Up to 20 mm
Titanium Alloy	Up to 20 mm

*Maximum cutting thickness depends on the selected laser power.

Machine Applications

Suitable for:

Shipbuilding Industry
Steel Structure Fabrication
Heavy Machinery Manufacturing
Construction Equipment
Railway Equipment
Bridge Engineering
Wind Power Components
Pressure Vessel Manufacturing
Mining Equipment
Industrial Metal Fabrication
Energy Equipment
Aerospace Components

Standard Configuration

Component	Brand / Specification
Fiber Laser Source	Raycus / MAX / IPG (Optional)
Laser Cutting Head	Raytools / BOCI Auto Focus
CNC Controller	FSCUT
Servo Motor	Yaskawa / Inovance
Guide Rails	HIWIN / PMI
Rack & Pinion	YYC Precision
Water Chiller	Hanli / S&A
Electrical Components	Schneider
Lubrication System	Automatic Central Lubrication

Advantages

Extra-large cutting capacity for oversized plates
Stable ground rail structure for long-distance accuracy
Excellent rigidity and vibration resistance
High-speed industrial cutting performance
Smooth, burr-free cutting quality
Low maintenance and operating costs
Energy-efficient fiber laser technology
Reliable continuous production
Supports a wide range of metal materials
Long service life with industrial-grade durability

Optional Accessories

Optional Equipment
Automatic Plate Loading System
Automatic Plate Unloading System
Dust Collection System
Air Compressor
Voltage Stabilizer
Intelligent Nesting Software
Remote Monitoring System
Production Management Software
Automatic Lubrication Upgrade

Industries Served

Shipbuilding
Steel Structure Engineering
Heavy Equipment Manufacturing
Mining Industry
Construction Machinery
Railway Manufacturing
Energy & Power Equipment
Bridge Construction
Industrial Fabrication
Infrastructure Projects

Warranty

Item	Coverage
Machine Warranty	2 Years
Laser Source Warranty	Up to 3 Years
Technical Support	Lifetime Online Support
Installation	Available
Operator Training	Available

Why Choose This Machine?

The GR-10025 Ground Rail Large Format Fiber Laser Cutting Machine is engineered for industries that demand precision cutting of oversized metal sheets with maximum efficiency and reliability. Its heavy-duty ground rail structure, intelligent CNC controls, and advanced fiber laser technology ensure exceptional cutting accuracy, increased productivity, and reduced operating costs. It is the ideal solution for large-scale fabrication, shipbuilding, heavy engineering, and industrial manufacturing where performance and durability are essential.
