Price range: $12,800.00 through $24,800.00

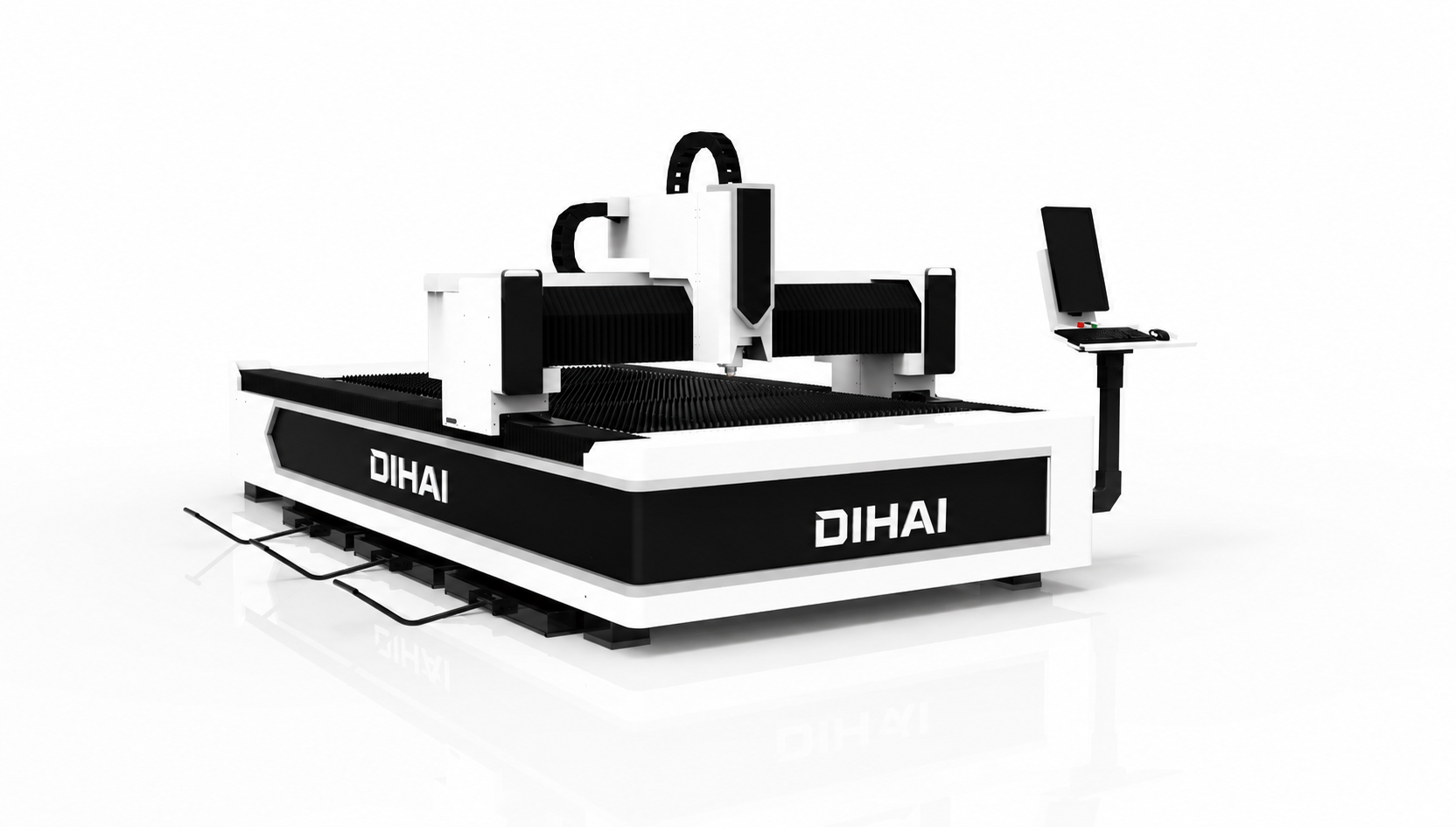

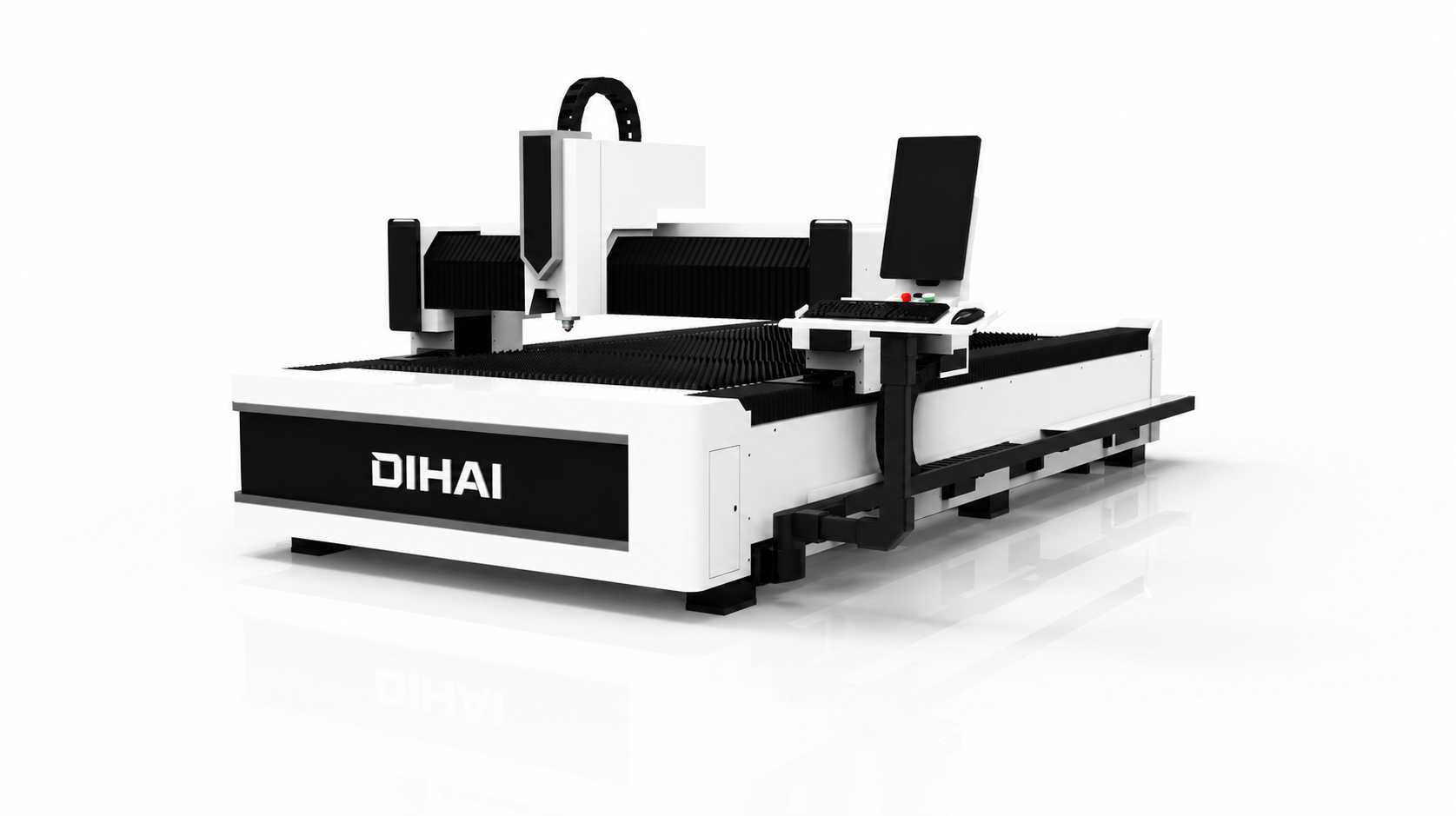

The ZL3015A Fiber Laser Cutting Machine is a high-performance CNC sheet metal cutting system designed for precision, speed, and reliability. Equipped with an advanced fiber laser source and intelligent CNC control, it delivers smooth, accurate cuts on stainless steel, carbon steel, aluminum, brass, copper, and other metal materials. Its heavy-duty gantry structure and high-speed transmission make it ideal for industrial manufacturing and metal fabrication.
The ZL3015A Fiber Laser Cutting Machine is engineered for high-precision sheet metal processing across a wide range of industries. Featuring a robust gantry structure, dual rack-and-pinion transmission, and servo motor drive system, the machine offers excellent stability, fast cutting speeds, and superior accuracy.
Powered by leading fiber laser sources such as MAX, Raycus, IPG, or Reci, the ZL3015A supports laser powers ranging from 1kW to 30kW, allowing manufacturers to process thin and thick metal sheets efficiently. It is suitable for cutting stainless steel, carbon steel, aluminum, brass, copper, titanium alloy, galvanized steel, and other metal materials with smooth, burr-free edges.
| Specification | Details |
|---|---|
| Model | ZL3015A |
| Working Area | 3000 × 1500 mm |
| Laser Power | 1kW – 30kW |
| Laser Source | MAX / Raycus / IPG / Reci |
| Laser Wavelength | 1064 nm |
| Position Accuracy | ±0.02 mm/m |
| Repeat Position Accuracy | ±0.01 mm |
| Maximum Cutting Speed | 140 m/min |
| Maximum Acceleration | Up to 4G |
| Working Voltage | 380V, 3 Phase, 50/60Hz |
| Auxiliary Gas | Oxygen, Nitrogen, Compressed Air |
| Fiber Module Life | More than 100,000 Hours |
| Interface | USB, RJ45 |
| Working Temperature | 0–45°C |
| Machine Weight | Approx. 2,000 kg |
Specifications are based on the manufacturer’s published data.
| Material | Suitable |
|---|---|
| Carbon Steel | ✔ |
| Stainless Steel | ✔ |
| Aluminum | ✔ |
| Copper | ✔ |
| Brass | ✔ |
| Titanium Alloy | ✔ |
| Galvanized Steel | ✔ |
| Silicon Steel | ✔ |
| Industry | Application |
|---|---|
| Metal Fabrication | Precision Sheet Cutting |
| Automotive | Vehicle Components |
| Aerospace | Precision Metal Parts |
| Kitchen Equipment | Stainless Steel Products |
| Electrical Cabinets | Panel Manufacturing |
| Construction | Structural Metal Components |
| Machinery Manufacturing | Industrial Parts |
| Advertising | Metal Signage |
| Component | Specification |
|---|---|
| Laser Source | MAX / Raycus / IPG / Reci |
| CNC Controller | Intelligent CNC System |
| Drive Motor | AC Servo Motor |
| Transmission | Rack & Pinion |
| Cooling System | Industrial Water Chiller |
| Guide Rail | Precision Linear Guide |
| Cutting Head | Auto Focus Laser Head |
| Item | Details |
|---|---|
| Warranty | 3 Years |
| Technical Support | Lifetime Online Support |
| Installation | Available |
| Operator Training | Available |
| Supply Capacity | 200 Sets / Month |
The ZL3015A Fiber Laser Cutting Machine combines advanced fiber laser technology with a rigid machine structure to deliver outstanding cutting performance, high productivity, and long-term reliability. Its versatile configuration options, precision engineering, and energy-efficient operation make it an excellent choice for manufacturers seeking a dependable CNC laser cutting solution for industrial metal fabrication.
